Product Details:
|
| Montiro Material: | Aluminum Alloy | Case Material: | Aluminum Alloy |
|---|---|---|---|
| Panel Size: | 65.5*8cm | Panel Thickness: | 0.18/0.5mm Aluminum Panel |
| Case Size: | 64.3*7.1*73cm | Screen Size: | 41.8*23.8cm |
| Monitor: | 17.3" Full HD Screen | Screen Tilt Angle: | 0-30 Degree |
| Build In Microphone: | Discussion Conference System MIC | Protection: | Anti-pinching Hand Protection |
| Voltage: | 110V Or 240V |

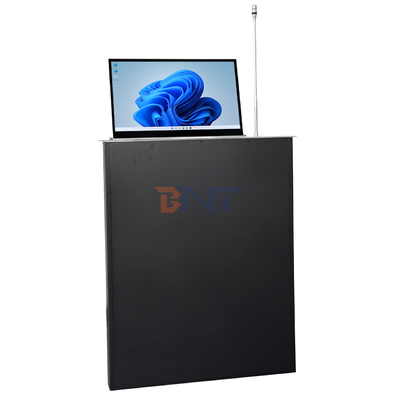

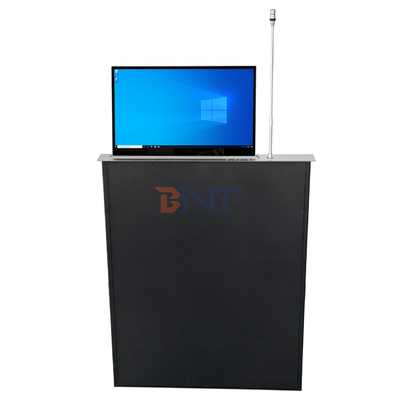

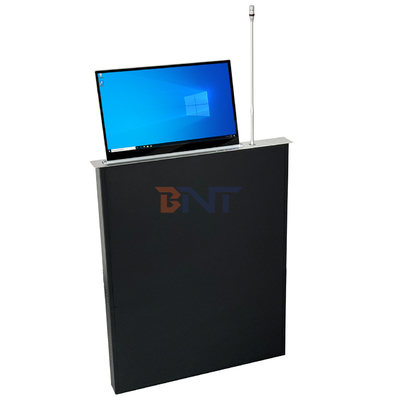

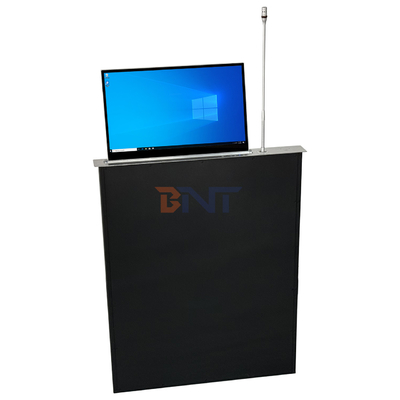

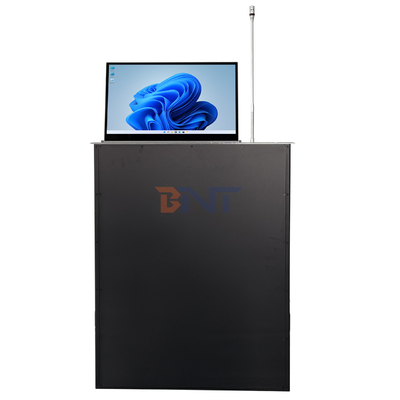

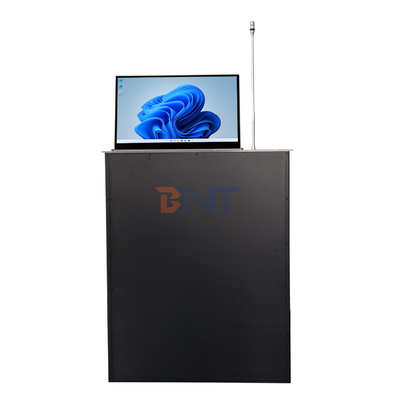

BNT Motorized Monitor Lift Description
|
1.The overall body of this product adopts a pure aluminum alloy structure. All materials used are extruded at high temperature using formed aluminum molds and then hardened for 24 hours. Then, the parts are generated through CNC precision machining. Surface treatment: By fine wire drawing and oxygen oxidation, an oxide protective layer is generated
2. DC Drive Motor: Equipped with advanced stepper motors, the factory strength can be adjusted, allowing for manual adjustment of the tilt angle of the LCD screen to achieve the best visual effect.
3.Transmission method: Adopting advanced chain transmission architecture to reduce the noise caused by gear interlocking and achieve better noise reduction effect. Two solid stainless steel guide columns are used on both sides of the lifting frame to ensure the smooth lifting and lowering of the LCD screen
.4.The flip door adopts an upward flipping conical structure, which makes the small gaps opaque and achieves a sealed visual sense. The transmission of the flip door adopts a trapezoidal groove attached to the two side plates, achieving a simple and elegant overall design.
Title goes here.
5. Panel with external computer host switch, USB interface, computer host switch shaped display light.
6. It can support high-definition dual HDMI input simultaneously, and the panel button comes with a signal switching function between the two HDMI channels (HDMI * 2 and HDMI * 1, VGA * 1 optional).
7. The panel control buttons can not only control the machine's rise, fall,tilt forward, and tilt backward normally, but also switch to adjust various parameters of the display, such as brightness, color,etc., by pressing the function switching button.
8. 16 seconds of rapid rise and fall, using advanced chain transmission architecture to reduce the noise caused by gear interlocking, making the noise reduction effect even better.
9. The display screen is made of glass to prevent dust and fingerprints.
10. Supports high-definition 1920 * 1080 resolution.
11. Adopting high-precision and high-sensitivity capacitive touch screen, supporting ten point touch. (Optional)
12. The microphone adopts advanced stepper motor force and moderate speed. When there is a foreign object above the microphone, it
will not damage the microphone.
13. The microphone is driven by a chain and paired with a linear slide rail to reduce transmission noise and achieve a silent transmission effect.
14. The microphone descent supports automatic centering of the microphone function to ensure that the microphone can be used normally next time.
The ultra-thin series LCD screen electric elevator is mainly used in various high-end conference halls, trading halls, advanced multimedia network systems, paperless conference systems, monitoring systems, query systems, high-end office spaces, etc. Widely used in various industries such as government, postal and telecommunications, transportation, aerospace, banking, railway, water conservancy, electricity, securities, flood control, petroleum, chemical, finance, schools, hospitals, and enterprises.
