Product Details:
|
| Material: | Aluminum Alloy | Style: | LCD Motorized Lift For Monitor |
|---|---|---|---|
| Monitor Size: | 15-17 Inch Screen | Panel Size: | 480*145mm |
| Panel Thickness: | 5mm | Case Size: | 463*130*578mm |
| Monitor Workable Size: | 405*75mm | Tilting Angle: | 0-15 Degree |
| Color: | Aluminum Black | Voltage: | 220-240V |
| Application: | Audio Video Conference System | Monitor Protection: | Monitor Power Off Once Reach Bottom |
| Highlight: | lcd monitor lift,computer screen lift |
||
Desktop Pop Up LCD Motorized Lift For 17 Inch All Brands LCD/LED Monitor Screen
Introduction:
LCD motorized lift is high technologies lifting equipment for hidden audio video conference system. User could use the LCD screen for presentation during meeting through control the monitor rising up from table automatically. And control the monitor lifting down into the table bottom after finished meeting.
Application

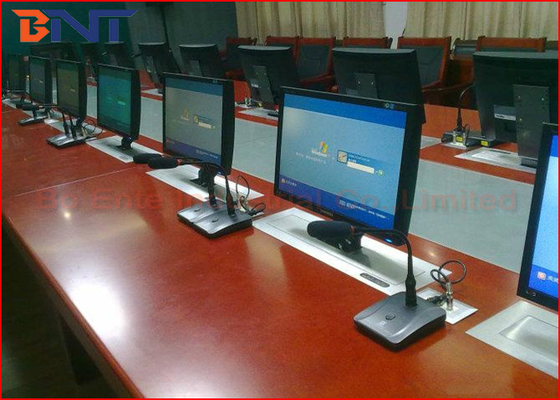

LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Feature:
1, Made of aluminum alloy panel and steel case, adopt imported circuit board, synchronous motor,and gear & rack.
2, Circuit board make motor working to bring gear lifting monitor up with rack. Supply the most steady and safe during monitor lifting up and down.
3, It’s smoothly and quietly during lifting. Low noise which less than 30db.
4, Provides 15 degree screen adjustable angle for prefect reading area during meeting.
5, Monitor could be power off automatically once reach the bottom case, And power on if reach the top table.
6, Complicated with AMX/Crestron or other central controller via RS232 port.
7, Aluminum oxidation with drawing polishing surface process to make panel smooth and bright, ensure elegant and high grade appearance
8, Complicated with all brands LCD/LED monitor which bottom side cable connecting
Selling Points:
1, high quality circuit board & motor to offer long working life
2, Packed with strong carton with foam cushion to protect product during transportation. Wood box or wood support is available if required.
3, Provide professional user’s manual and cable connection layout for installation.
4, Offer 1 year warranty and free spear parts for wholesale.
Specification:
| Item Series | LCD Monitor Lift |
| Item Model | BLL-17 |
| Product Name | LCD motorized lift for monitor |
| Products consitute | LCD monitor lift + Remote control |
| Material | Aluminum alloy draw bench panel |
| Panel size | 480*145*5mm |
| Box size | 463*130*578mm |
| Panel thickness | 5mm |
| Lift mount size | 405*78mm |
| Packing size | 60*25*70mm |
| Voltage | 110V,220V,240V |
| Power | 20~25W |
| Tilting angle | 0~15 degree |
| Single trip time | 28s |
| Color | silver /black matte/ gold |
| Remote distance | 10m |
| Control Way | touch switch, remote control, RS232 port |

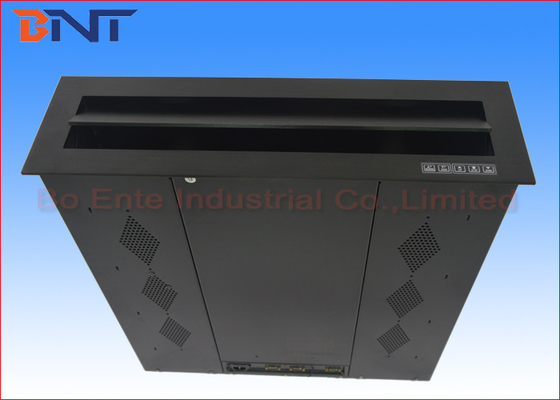

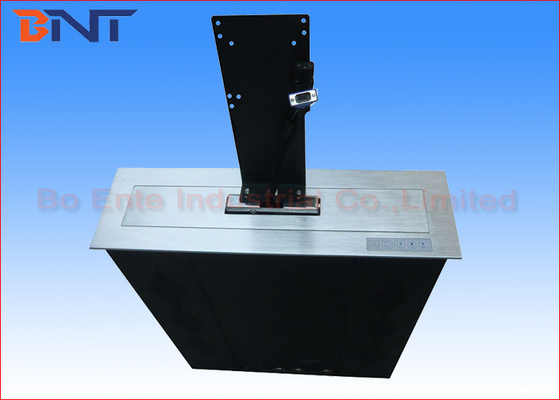

Product Pictures:
