Product Details:
|
Product Name: | Pop Up Motorized Lcd Lift | Material: | Aluminum Alloy |
---|---|---|---|
Color: | Silver/Black | Monitor: | 18.5inch FHD Monitor |
Panel Size: | 515*80*5mm | Cutout Size: | 4999*73mm |
Box Size: | 497*71*620mm | Resolution Ratio: | 1920*1080 |
Electrical Adjust Angle: | 0-30 Degree | Warranty: | 12 Months |
Interface: | HDMI+USB+RS232 I/O | Optional: | Touch Screen |
Highlight: | Pop Up Motorized Lcd Lift,18.5 Inch Motorized Lcd Lift,Aluminum Alloy Motorized Lcd Lift |

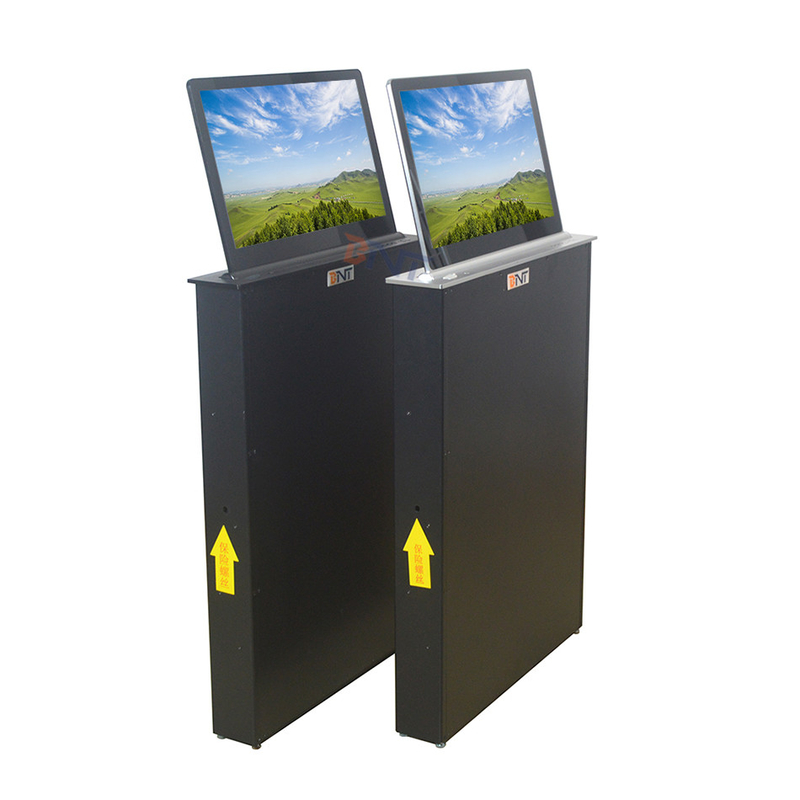

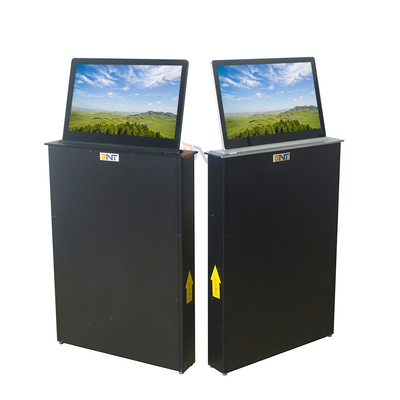

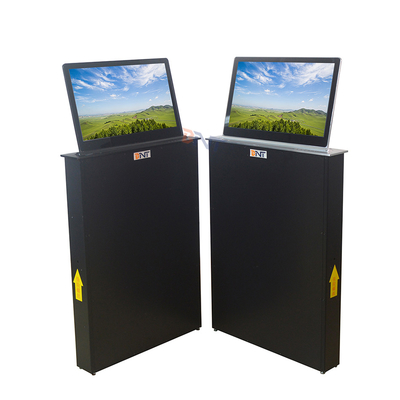

All in one touch monitor 18.5 inch pop up motorized lcd lift for paperless video conference system
AML-18.5T is a lcd lift with 18.5inch touch screen for video conference system.
Auto pop up electric monitor lift integrated with different size of monitor for selection.
The screen driving by the monitor lift with synchronous motor, it could be rising up form the conference table
It is widely use in conference system, video conference system, tv conference system, financial analyzing system,advanced office system,lecture and training room with conference table& computer desk,etc.
Selling Point:
1.Full aluminum alloy finishment
2.Ultra-thin Design, only 8cm width of whole lift product
3.Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working
3.Hidden design to save more space and makes a modern office environment
4.Ultra --thin monitor and lift body, elegant design and save space
5.0-30 degree adjustable angle to make prefect viewing angle for users
20 degree automatic pitch angle once the monitor finish pop up
6.Works smoothly and quietly. Low noise which less than 30db
7. Protecting function of LCD monitors by cutting the electricity off automatically
8. Control system: Touch Switch, RF remote control, RS232 AND rs 485 central control.
9.Power plug and voltage could be changed according to user's requirement
Features | |
Item number: | AML-18.5T |
Product name: | lcd lift |
Material: | Aluminum alloy |
Color | Black/silver |
Panel Size: | 515*80*5mm |
Box Size: | 497*71*620mm |
Cutout Size: | 499*73mm |
Monitor: | 18.5 inch FHD touch screen (16:9) |
Resolution ratio | 1920*1080 |
Automatic Pitch Angle | 20 degree |
Interface | HDMI+USB+RS232 I/O |
Control way | Switch button/remote control/central control |
