Product Details:
|
| Product Name: | Retractable Screen Lift | Material: | Aluminum Alloy Panel+ Cold Rolled Steel Case |
|---|---|---|---|
| Color: | Silver/Black | Monitor: | 15.6 Inch FHD Screen (16:9) |
| Panel Size: | 558*88*5mm | Cutout Size: | 540*77mm |
| Resolution Ratio: | 1920*1080 | Automatic Pitch Angle: | 15 Degree |
| Electrical Adjust Angle: | 0-30 Degree | Interface: | HDMI+USB+RS232 I/O+XRL |
| Microphone Feature: | With Automatic Straight Up Functions | Microphone: | Goose Neck Microphone (40cm) |
| Highlight: | Retractable Motorized Monitor Lift,Ultra Slim Motorized Monitor Lift,1920*1080 Motorized Monitor Lift |
||

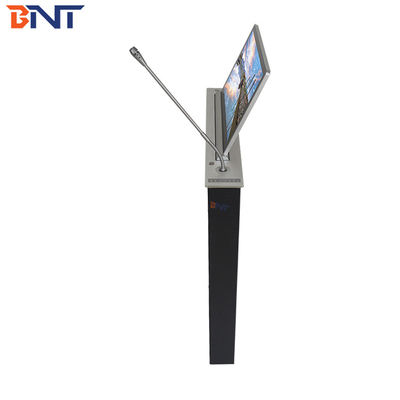

Ultra slim motorized retractable screen lift for conference system with 15.6 inch screen and built in microphone
Introduction:
AML-15.6MT is a lcd display lift for conference system including microphone and display .
With With sys motors, both the screens and microphone could be rising up and go down together form the conference table for conference system, monitor have size 13.3/15.6/17.3/18.5/21.5/23.6 inch for selection.
Microphone have the function of automatic straight up.
Selling Point:
Ultra-thin Design, only 8cm width of panel
Motorized lift with 15.6inch FHQ screen + motorized microphone lift up and down system
Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working
with Full HD screens
Hidden design to save more space and makes a modern office environment
0-30 degree adjustable angle to make prefect viewing angle for users
works smoothly and quietly
with protecting function of LCD monitors by cutting the electricity off automatically
Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..
Power plug and voltage could be changed according to user's requirment
Detail Parameter:
| Item Name | lcd display lift |
| Model | AML-15.6MT |
| Material | Aluminum alloy panel+case |
| Monitor | 15.6 inch FHD screen |
| Microphone | Goose Neck Microphone (40cm) |
| Resolution ratio | 1920*1080 |
| Panel Size | 615*80*5mm |
| Box Size | 602*71*730mm |
| Panel Thickness | 5mm |
| Cutout Size | 604*73mm |
| Display adjust angle | 0-30 degree |
| Color | Black/ Silver |
| Interface | HDMI+RS232 I/O+USB+XRL |
| Control way | Remote control/ Switch/ Central control |
| Type | Monitor & MIC lift together |
