Product Details:
|
| Montiro Material: | Aluminum Alloy | Case Material: | Aluminum Alloy |
|---|---|---|---|
| Panel Size: | 65.5*8cm | Panel Thickness: | 0.18/0.5mm Aluminum Panel |
| Case Size: | 64.3*7.1*73cm | Screen Size: | 41.8*23.8cm |
| Monitor: | 17.3" Full HD Screen | Screen Tilt Angle: | 0-30 Degree |
| Build In Microphone: | Discussion Conference System MIC | Protection: | Anti-pinching Hand Protection |
| Voltage: | 110V Or 240V | ||
| Highlight: | 17.3 Inch Motorized Monitor Lift,HD Screen Motorized Monitor Lift,Aluminum Panel Motorized Monitor Lift |
||
Ultra Light Design 17.3 Inch Motorized Retractable Monitor Lift With Build In Microphone
Introduction:
Boente ultra thin & Ultra light design for motorized lcd lift. Made of full aluminum alloy material, included the case material. Only 10kgs weight to offer ultra light for lower transporation cost.
Ultra thin design integrated with 17.3inch full HD screen. Using motor drive design to motorized run monitor up and down smoothly. Automatic tilt montiro angle to be 15 degree and could electrical adjust monitor angle from 0 degree to 30 degree.
Integrated with build in conference system microphone, could be disucssion and video camera auto trucking.
Retractable monitor lift offer a automatci hidden design for smart conference solution for meeting room.
Widely used for all kinds of meeting room for conference audio video solution.
Production Compatibility:
BOSCH digital conference system
AMX, CRESTRON, Extron or other 3rd party central control system
WIFI network control system
Office paperless conference system
CISCO or other 3rd party Network video system
Production Datasheet:
| Product name | motorized retractable monitor lift |
| Model No. | AML-17.3M |
| Material | full aluminum alloy |
| Panel Size | 65.5*8cm |
| Case Size | 64.3*7.1*73cm |
| Panel thickness | 0.18 / 0.5cm aluminum panel |
| Integrated monitor | 17.3 inch LED screen |
| Resolution | 1920*1080 |
| Screen Size | 41.8*23.8cm |
| Screen Tilt Angle | Automatic 0-15 degree /Electricl adjustable 0-30 degree |
| Color | brushed aluminum silver / aluminum black matte |
| Integrated MIC | Conference Discussion MIC |

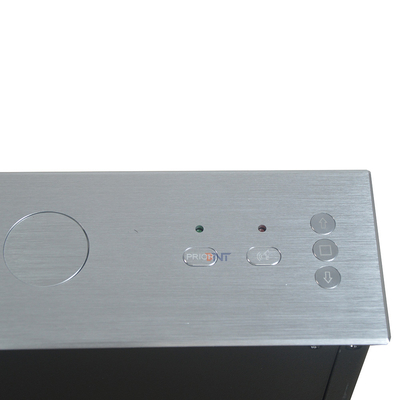

| Panel Button Detail | UP/DOWN/STOP for monitor operation |
| Titt /back for angle adjustable | |
| Adjust brightness and color for screen | |
| Signal switching for HDMI to VGA | |
| Integrated item selection | full HD touch screen |
| conference system discussion/video/voting microphone | |
| full HD camera | |
| smart AIO PC | |
| office automatic paperless system | |
| N.Weight | 10.5kgs |
| Power Supply | 220V/50HZ, 110v/60HZ |
| Max Power | 28W |
| Service Life | Above 20000 times |
| Working Sound | Less than 15 decibels |
| Certification | CE,ROHS, IECC, CB, FCC,Sebar |
| Control Method | button on top panel, remote control, central control, wirless ipad network control |
| Product Function | major lift monitor, hidden display monitor on meeting table, automatic lifting monitor up/down/stop accordingly, integrated with microphone, touch screen, PC and camera for audio video conference solution |
| Application | conference room, meeting room, trainning room, boardroom, Army command room, Presidential election room, news release seminar room,school Academic seminar room,office senior executive meeting room, hotel |

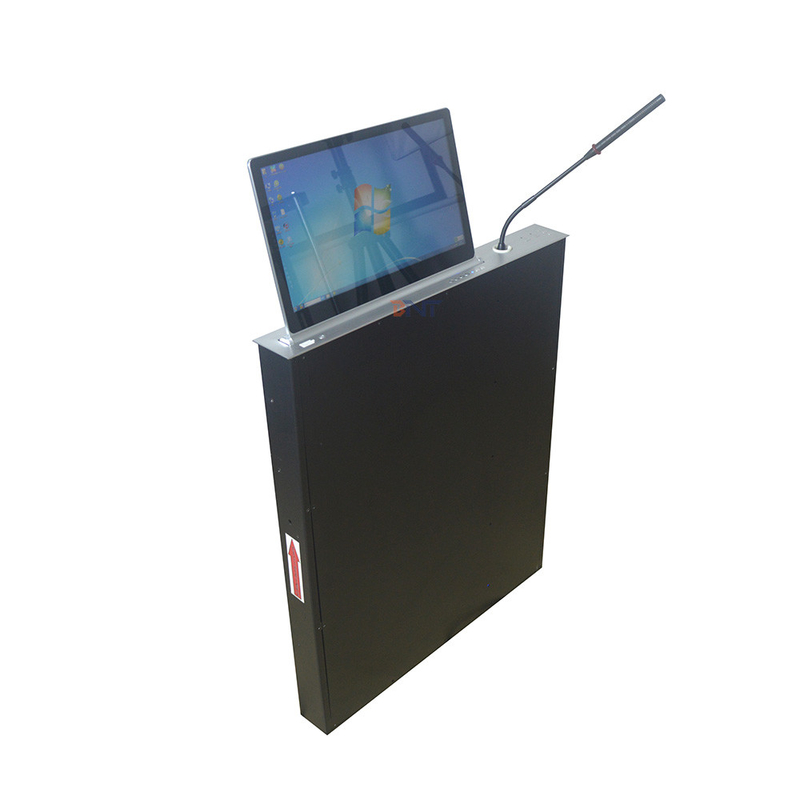

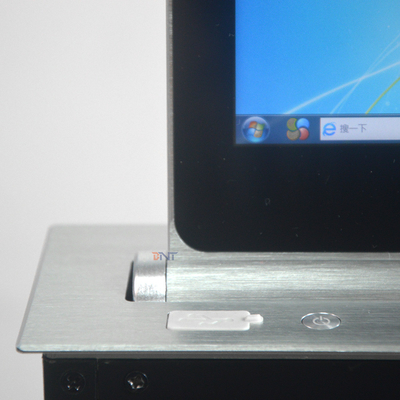

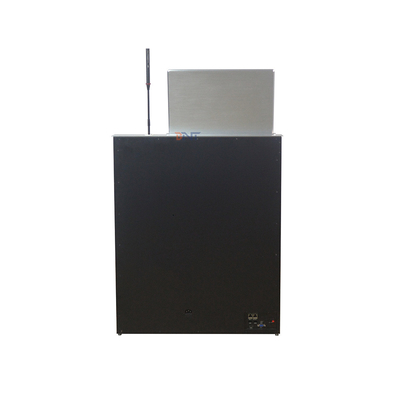

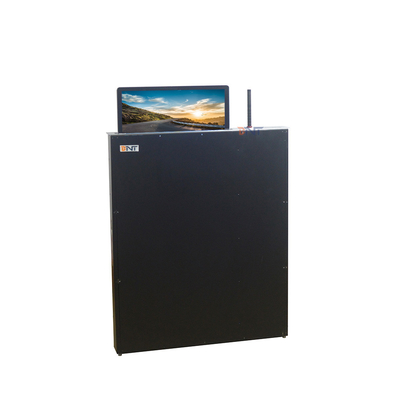

Product Picture:
