Product Details:
|
| Style: | Lifting Display Monitor | Material: | Aluminum Alloy |
|---|---|---|---|
| Panel Size: | 58.8*8.8cm | Thickness: | 0.5cm |
| Case Size: | 53.8*7.5*60.5cm | Cutting Size: | 54.1*7.8cm |
| Monitor Size: | 17.3 Inch LED Screen | Resolution: | 1920*1080 |
| Application: | Commercial Meeting Room | Color: | Brushed Aluminum Black |
| Interface: | RS232, USB, HDMI | ||
| Highlight: | LCD Computer Motorized Monitor Lift,Pop Up Motorized Monitor Lift,Integrated Motorized Monitor Lift |
||
Integrated with 17.3 retractable monitor Pop Up LCD Computer Monitor Lift, Silver Color
Introduction:
Pop Up Motorized monitor lift is a new ultra-thin design integrated with 17.3 inch FHD screen for office audio video solution.
It is high technologies lifting equipment with screen. Only 8cm width of product to make lift with table more smart and fashionable.
It could lift the monitor vertical retractable automatically by wireless remote, and make the screen motorized horizontal overturn 15~35 degree. It could make the screen straight with 15-35 degree moving back, and lifting down vertical into lifting equipment case.
It provides a convenient and advance solution for meeting, particularly for enormous information presentation, like data, image, sound, PPT ect. LCD TV lift could be integrated with 17.3” touch screen, discussion microphone, front camera and all in one smart computer. The lift mechanism support RS232/RS485 communication protocols. It can be distantly controlled by AMX/Crestron central controller or wireless automatically system. It make meeting information presentation more easy, clear and convenient.
Features:
1, Screen have electric adjustable function, user could make screen to be 0-45 degree position as required.
2, Aluminum oxidation with drawing polishing surface process to make panel and monitor shell smooth and bright, ensure elegant and high grade appearance
3, Whole complete motorized lifting equipment with 17.3 Inch FHD wide screen.
4, Made of aluminum alloy panel and monitor shell, adopt imported circuit board, synchronous motor,and gear & rack.
5, It is smoothly and quietly during monitor lifting. Low noise which less than 30db.
6, Circuit board make motor working to bring gear lifting monitor up with rack. Supply the most steady and safe during monitor lifting up and down.
7, Monitor would be power on automatically if reach desktop and power off if arrived the bottom. And power off automatically if reach the bottom.
8, Could integrated with touch screen, microphone, front camera, all in one computer as required.
Specification:
| Product name | motorized retractable monitor lift |
| Model No. | BLL-17.3 |
| Material | full aluminum alloy |
| Panel Size | 52.8*8.8cm |
| Case Size | 51.7*7.5*60cm |
| Panel thickness | 5mm aluminum panel |
| Integrated monitor | 17.3 inch LED screen |
| Resolution | 1920*1080 |
| Screen Area | 418*259*10mm |
| Screen Tilt Angle | Automatic 0-15 degree /Electricl adjustable 0-30 degree |
| Color | brushed aluminum silver / aluminum black matte |
| Connection Interface | HDMI, USB, RS232 I/O |

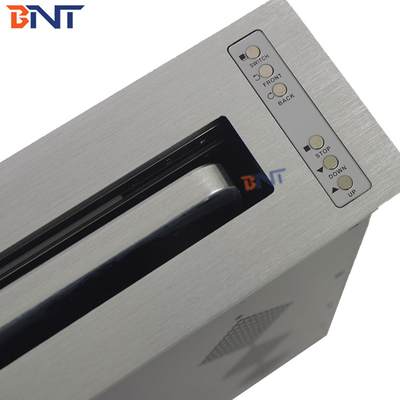

| Panel Button Detail | UP/DOWN/STOP for monitor operation |
| Titt /back for angle adjustable | |
| Adjust brightness and color for screen | |
| Signal switching for HDMI to VGA | |
| Integrated item selection | full HD touch screen |
| conference system discussion/video/voting microphone | |
| full HD camera | |
| smart AIO PC | |
| office automatic paperless system | |
| Power Supply | 220V/50HZ, 110v/60HZ |
| Max Power | 25W |
| Service Life | Above 20000 times |
| Working Sound | Less than 15 decibels |
| Certification | CE,ROHS, IECC, CB, FCC |
| Control Method | button on top panel, remote control, central control, wirless ipad network control |
Pictures:
