Product Details:
|
Product Name: | Bureau Monitor Lift | Material: | Aluminum Alloy |
---|---|---|---|
Color: | Silver/Black | Monitor: | 23.6inch FHD Monitor |
Panel Size: | 650*80*5mm | Cutout Size: | 634*73mm |
Box Size: | 632*71*700mm | Resolution Ratio: | 1920*1080 |
Electrical Adjust Angle: | 0-30 Degree | Monitor Pitch Angle: | 20 Degree |
Interface: | HDMI+USB+RS232 I/O | Protection System: | With Anti-pinch Hand Protect |
Highlight: | Conference Video Motorized Monitor Lift,Ultra Light Motorized Monitor Lift,23.6 Inch Motorized Monitor Lift |

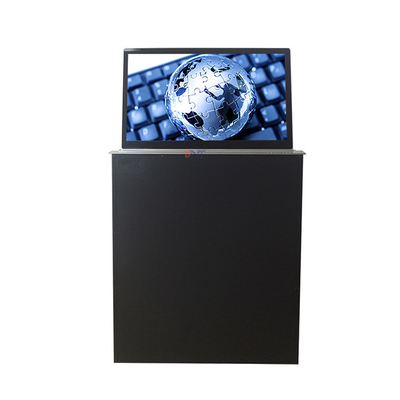

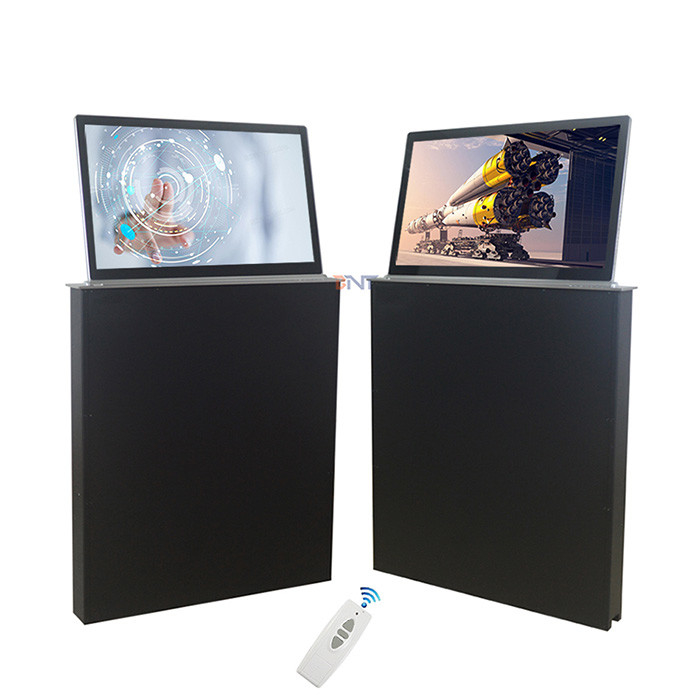

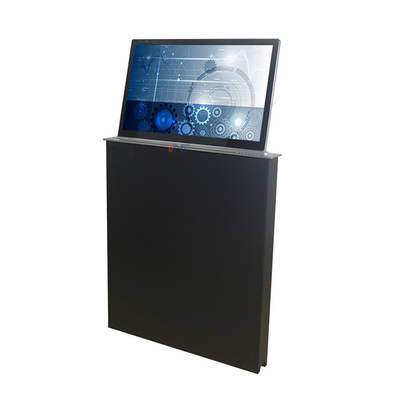

23.6 inch ultra light conference video system built in desk bureau monitor lift
Introduction:
ALM-23.6 retractable monitor is designed as advance hiding equipment for video conference system.
15.6, 17.3, 18.5, 21.5, 23.6 inch Full HD Screen/ touch screen for selection to meet the requirment of different monitor size.
Upgrate design 80mm ultra thin width panel, the whole product use aluminum alloy material, which is light to save the shipping cost. and With double super-quite synchrous motor, rasing up and down by tank chain and mechanical gear, the lift is much smooth and quiet when working.
It is widly use in conference system, video conference system, tv conference system, financial analyzing system, advanced office system,lecture and training room with conference table& computer desk,etc.
Selling Point:
Full aluminum alloy material, light, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.
Ultra-thin Design, only 80mm width of whole product
Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working
Hidden design to save more space and makes a modern office environment
Ultra thin monitor and lift boday, elegant design and save space
0-30 degree adjustable angle to make prefect viewing angle for users
Virtually Silent working with excellent working life.
works smoothly and quietly, fast
with protecting function of LCD monitors by cutting the electricity off automatically
Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..
Power plug and voltage could be changed according to user's requirment
Detail Parameter:
Item Name | retractable monitor |
Model | AML-23.6 |
Material | Aluminum alloy |
Monitor | 23.6 inch FHD screen (16:9) |
Resolution ratio | 1920*1080 |
Panel Size | 650*80*5mm |
Box Size | 632*71*700mm |
Panel Thickness | 5mm |
Cutout Size | 634*73mm |
Monitor Pitch Angle | 20 degree |
Electrical Adjust Angle | 0-30 degree |
Color | Black/ Silver |
Interface | HDMI+USB+RS232 I/O |
