Product Details:
|
| Product Name: | Lcd Screen Lift System | Material: | Aluminum Alloy |
|---|---|---|---|
| Color: | Silver/Black | Monitor: | 15.6 Inch FHD Screen |
| Panel Size: | 450*80*5mm | Back Screen: | 10.1 Inch Screen |
| Monitor Size: | 377*238*10mm | Resolution Ratio: | 1920*1080 |
| Electrical Adjust Angle: | 0-30 Degree | Protection System: | With Anti-pinch System |
| Interface: | HDMI+USB+RS232 I/O | Optional: | Touch Screen |
| Highlight: | HD Motorized Lcd Lift,Touch Screen Motorized Lcd Lift,1920*1080 Motorized Lcd Lift |
||

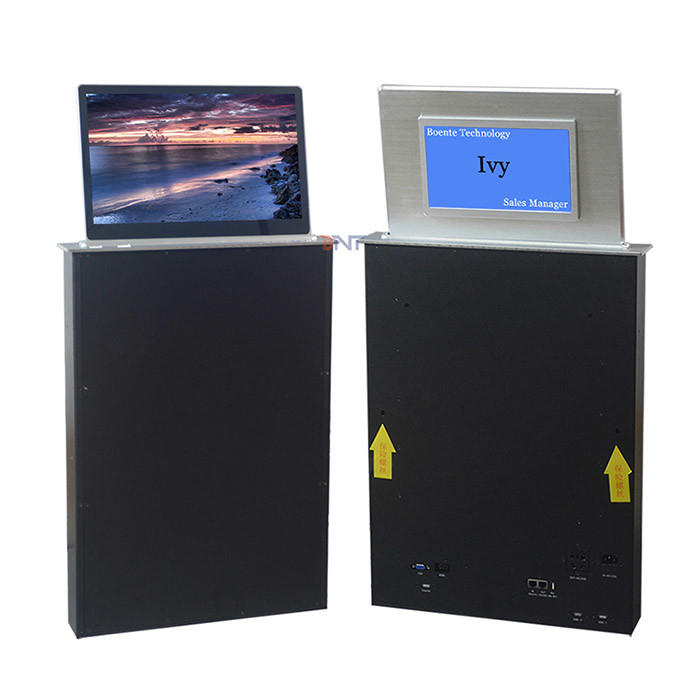

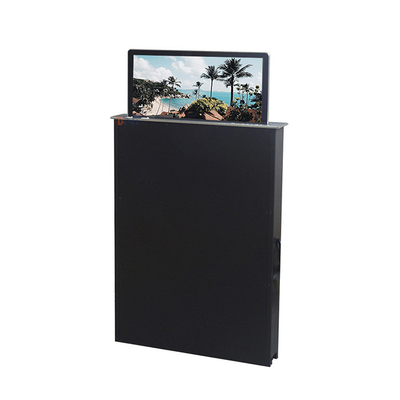

Ultra light HD motorized lcd screen lift system with back name display screen

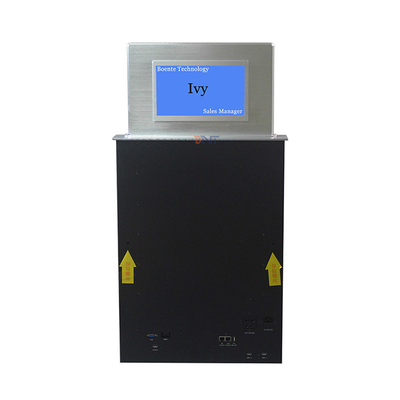

AML-15.6N is a motorized monitor lift with 15.6 inch FHD front screen and back name display screen 10.1inch.
Using updated lifting mechanism, makes the monitor lifts up and down faster and quieter.
With front 13.3 15.6, 17.3, 18.5, 21.5, 23.6 inch Full HD screen for selection,
It is widely use in conference system, video conference system, paperless system, training room, ect.
Selling Point:
1. Full aluminum alloy material
2. Ultra-thin Design, only 8cm width
3. Fast and quiet
4. 0-30 degree adjustable angle, 20 degree automatic pitch angle
5. Protecting function of LCD monitors by cutting the electricity off automatically
6. Control system: Touch Switch, RF remote control, RS232 AND rs 485 central control.
7. Power plug and voltage could be changed according to user's requirement
Specification:
| Features | |
| Item number: | AML-15.6N |
| Product name: | lcd screen lift system |
| Material: | Aluminum alloy |
| Color | Black/silver |
| Panel Size: | 450*80*5mm |
| Box Size: | 432*71*600mm |
| Cutout Size: | 434*73mm |
| Monitor: | 15.6 inch FHD screen (16:9) |
| Resolution ratio | 1920*1080 |
| Automatic Pitch Angle | 20 degree |
| Interface | HDMI+USB+RS232 I/O |
| Control way | Switch button/remote control/central control |
| Back Screen | 10.1 Inch Screen |
